LS-Auth integration with Login.gov as IDP (SAML)

Below are instructions to set up Login.gov as an IDP for LSAuth using SAML.

NOTE: Integration will need to be done against Logn.gov sanbox env.After testing is completed. the app will be promoted to prod by Login.gov team upon request.Please follow the https://developers.login.gov/ for more info

Create an Identity Provider Configuration in LSAuth

  • Note down the IDP details from the Login.gov meta data available below (Note: change the year at the end of the URL accordingly). Note down EntityID, SingleSignOnService (Post) Location,SingleSignOnService Location (Optional), Copy the IDP X509Certificate value to a .cer file

  • Generate a SP X509 certificate with public private keys using openssl or keytool to be used as signing cert for AuthNRequest

IDP metadata for Login.gov sandbox : https://idp.int.identitysandbox.gov/api/saml/metadata2020
IDP metadta for Login.gov production: https://secure.login.gov/api/saml/metadata2020

  • Log into the LS Auth console for and select the tenant that you will use.

  • Select “Providers” in the left nav menu and click the “Add New” button.

  • Select Provider Type “SAML2”

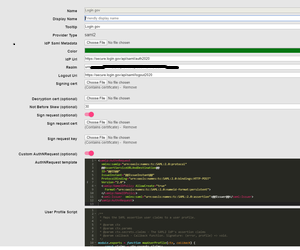

  • Update the following details

IDP URL (SSO URL copied from above): https://secure.login.gov/api/saml/auth2020
Logout URL (IDP Logout URL): https://secure.login.gov/api/saml/logout2020
Realm Set a unique string (eg format: urn:gov:gsa:SAML:2.0.profiles:sp:sso:NCATS:auth.ncats)
Signing Cert: IDP certificate you saved above

  • Enable Sign Request ,upload the Public and private SP certificates generated above.

  • Enable Custom AuthNRequest and enter the following format in the script box

<samlp:AuthnRequestxmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"@\@AssertServiceURLAndDestination@\@ID="@\@ID@@"IssueInstant="@\@IssueInstant@@"ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"Version="2.0"><samlp:NameIDPolicy AllowCreate="true"Format="urn:oasis:names:tc:SAML:2.0:nameid-format:persistent"></samlp:NameIDPolicy><saml:Issuer xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">@\@Issuer@@</saml:Issuer></samlp:AuthnRequest>

  • Use “User Profile Script” editor to set claim mappings. Copy the below script into the “User profile Script” block
    Note: Additional claims mapping options are also available in the application configuration.

module.exports = function mapUserProfile(ctx, callback) {

const claims = ctx.secrets.claims;

const profile = {

email: claims.email,

upn: claims.uuid

};

callback(null, profile);

}

Creating application on [Login.gov]{.ul}

  1. Request for admin account to Login.giv sandbox / partner dashboard following instructions in https://developers.login.gov/ (Get added to our test sandbox environment) and set up MFA for the account once its added. NOTE: For NCATS RDCRN project we are using team “HHS - NIH - NCATS - RDCRN”

  2. Sign in using your admin account to https://dashboard.int.identitysandbox.gov/

  3. You should see a team you are by default assigned to

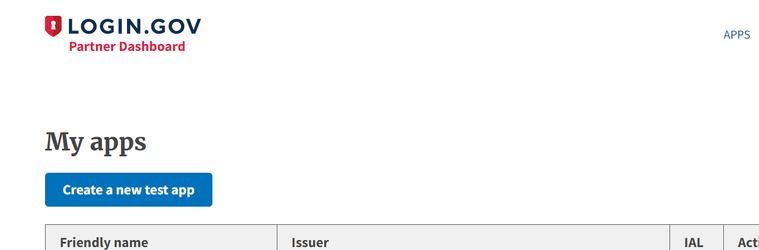

  1. Access “APPS” on the top right corner and click on 'Create a new test app'

5. Enter the App details Eg: shown below (Select a different name), Select Authentication protocol as SAML. Issue has to be same as the “Realm” configured above in LSAuth .

6. Enter the SP public key generated above (Used for signing the AuthNrequest on LSAuth).

Enter the ACS URL and Logout URL accordingly from LS-Auth: Quick Links

Disable Assertion Encryption and make sure “email “ is selected in the attributes.

7. Save the application.

References:

https://developers.login.gov/
